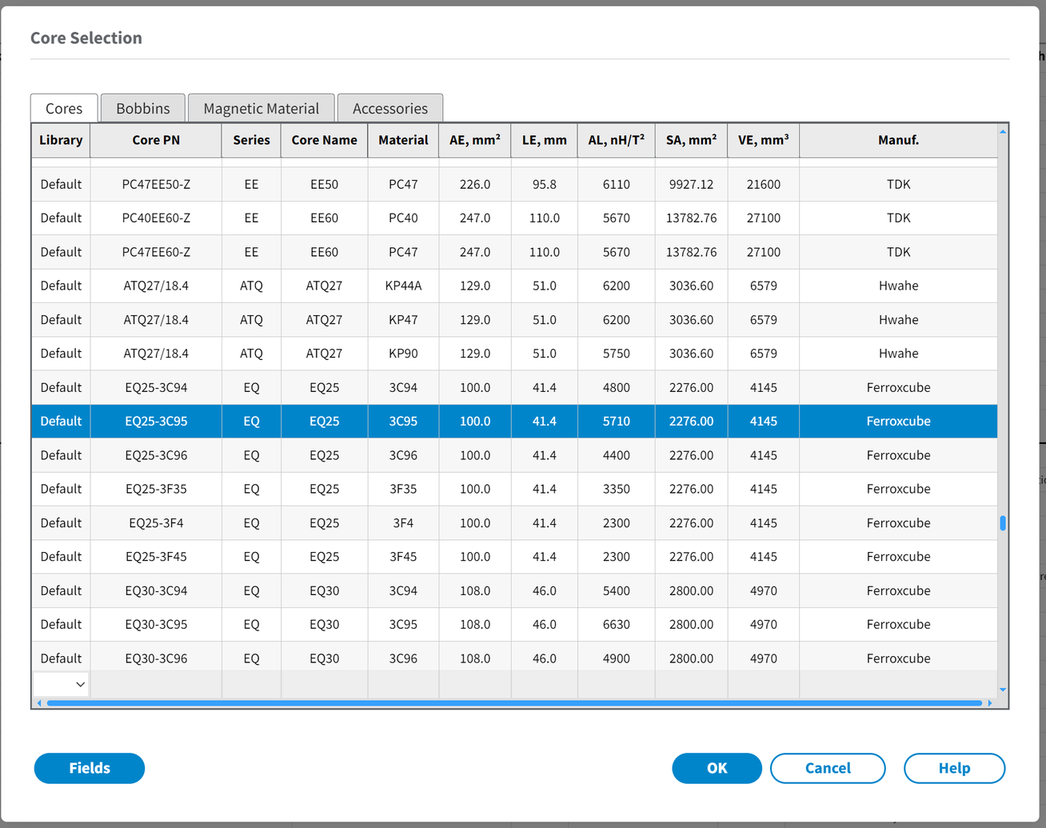

PIXls Core Selection dialog
displays a list of cores, bobbins, magnetic materials and accessories from the Magnetic Database.
User can filter cores by parameters and select core to be used in the design.
Other tabs (Bobbins, Magnetic material, Accessories) present information about Cores linked parts.
For PIXls designs User can select Core and Bobbin for the selected Core for using in the design.
